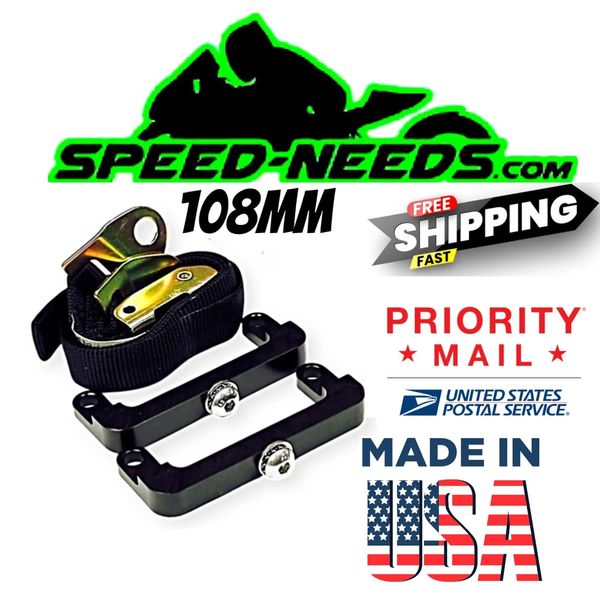

MOTORCYCLE SUSPENSION LIMIT

FRONTEND LOWERING STRAPS

&

RADIAL BRAKE CALIPER MOUNTING BRACKETS

MSRP $159.99

THESE ARE 108mm (4.25") CALIPER BRACKETS

(SEE ATTACHED PIC ON HOW TO MEASURE)

WILL NOT FIT THE 100mm BREMBO CALIPERS

This is a fast easy way to lower your bike on the street or at the track to provide for more level ride height. At the track these are used to adjust the front-end height to control weight transfer during launching.

Fits the Following Models:

Suzuki GSXR1000 01-26

Suzuki GSXR750 01-26

Suzuki GSXR600 00-26

Suzuki HAYABUSA 08-26

Kawasaki ZX10R 04-15

Kawasaki ZX14 04-26

Honda CBR1000RR 03-26

Honda CBR600RR 03-26

THESE STRAPS CAN REMAIN ON YOUR MOTORCYCLE WHEN DONE RACING. JUST A PUSH OF THE CAMBUCKLE LEVER AND YOUR BIKE WILL RETURN TO ITS NATURAL RIDE HEIGHT. NOW YOU CAN CRUISE AROUND WITHOUT DISRUPTING HANDLING OR STEERING. THEN WHEN THE TIME COMES, JUST A PUSH DOWN ON FRONT SUSPENSION WHILE PULLING THE STRAP HANDLE AND....BAM!! YOU ARE NOW ARMED AND READY TO TAKE CARE OF THAT LATE NIGHT "SITUATION" THAT NEEDS SOME ATTENTION.

THESE STRAPS ELIMINATE WHEELIES FOR LOWER 60' AND QUICKER E.T'S.

THEY WORK BY PRELOADING THE FRONT END TO PREVENT THE "HAMMER" EFFECT WHICH OCCURS WHEN LAUNCHING HARD.

• STRAP SPECS:
• 1" PRESS RELEASE CAM BUCKLE
• PRE-DRILLED BOLT PLATES AT THE ENDS
• 4.5' OVERALL LENGTH

5400 LB. TEST NYLON WEBBING

2180 LB. RATED CAM-BUCKLE

RADIAL BRAKE CALIPER MOUNTING

BRACKETS SPECS:

Anodized black finish radial mount caliper bracket kit.

These are the brackets that you have to use with Radially Mounted Brake Calipers to attach the front-end lowering straps.

CNC Machine from 6061 Billet Aluminum and provided with stainless steel corrosion free hardware.

DON'T SETTLE FOR CHEAP IMITATION POOR QUALITY KITS MADE IN CHINA! Be PROUD and buy AMERICAN made product!

SIMPLE UNIVERSAL INSTALL:

• Begin by removing top and bottom brake caliper mounting bolts.
• Re-insert the bolts through the Radial Mount Strap Brackets with the notched area facing toward the brake caliper.
• Torque bolts to 29 FT/LBS and repeat on the opposite side.
• Always route strap UNDER any cables and wires to prevent pinching or damage.
• Do not allow strap to twist. Route strap upward over steering neck, and down the other side.
• Attach the remaining end of strap and Tighten strap slightly to remove slack.
• Torque bolts on both sides to 15FT/LBS.

WHEN YOU ARE DONE RACING, SIMPLY PRESS THE LEVER ON THE CAM BUCKLE AND YOU WILL NOW BE BACK TO STOCK RIDE HEIGHT. NO NEED TO REMOVE THIS FROM THE BIKE COMPLETELY (UNLESS YOU WANT TO) THIS WAY IT IS ALWAYS THERE READY FOR ACTION.

*It is the buyer’s responsibility to research fitment of these straps on his or her application. Some newer bikes may require additional hardware or modifications to make work. If you are unsure then we advise you to search internet forums, chat rooms, visit your local drag strip etc. to find out for sure. The bike manufactures make small changes from year to year, and it is practically impossible for us to keep up with all of them.

For offroad closed course competition. NO warranty expressed written or implied.
